1、High Resolution image；
2、Three Modes Display；
3、Multiple Colors Display
.....
portable vein finder is a medical tool that helps healthcare workers and nurses locate the location of a patient's vein. They use advanced infrared technology and LED lights
High Resolution image
High-precision cameras and high-precision projectors with advanced vascular algorithms to ensure high resolution qualified images.
Multiple Sizes and Brightness Display
Three Modes Display
Normal, enhanced and deep mode with three puncture position prompts: deep, medium, and shallow.
Multiple Colors Display
Black white, green, green background, red, purple, purple background, optional for different skin.
ltem | Specification |
Light Source | Near Infrared |
Projector Resolution(pixel) | 854*480 |
Projection Size | Large, Medium, Small, Very Smal! |
Projection Color | Black white, green, green background, red, purple, purple background |
Projection Brightness | 4 levels adjustable |
Projection Mode | Normal, enhanced, depth |
Depth Prompts | Deep, medium, shallow |
Resolution Speed | 60frames/s |
Resolution Deviation | <0.10mm |
Best Projection Distance | 200士20mm |
Minimum ldentified Blood Vessel Diameter | >0.4mm |
Wave Length | 750-950nm |
Maximum Detection Depth | <8mm |
Sleeping Function | 30 minutes no operation goes into sleeping function |
Display | 0.96inch OLED display module, displayingpixels, battery, brightness, color, mode, sleepcountdown etc. |
Main Unit Consumption | 50VA |
Power | 100~240V,50/60HZ,Adapter:12V,2.5A |
Battery | Internal 7.2V 2200mAhworking time >2.5h |

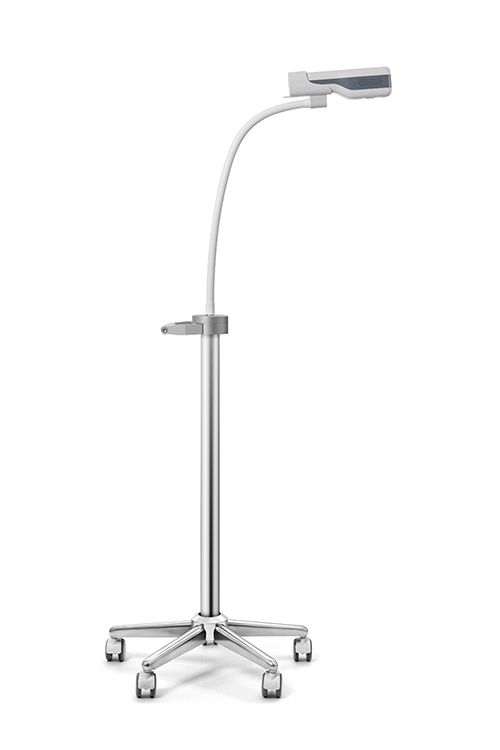

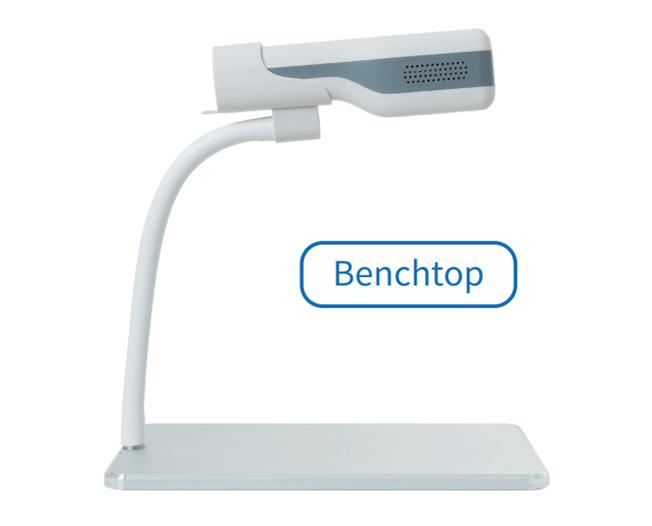

Fixed Option | Mobile stand, benchtop, handheld |
Weight | 480g |
Dimension | 220mm*65mm*65mm |
